Flat Top 821

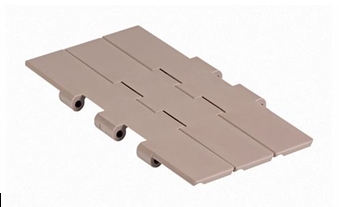

Flat Top 821is a straight running plastic chain with a stainless steel pin.  Top plate thickness is 5.0 mm (0.16”).  The 821 chain is considerably stronger than 820 chain and is available in widths up to 12”.  Applications include food products, containers and bottling lines.

Our chains are made from Trilon 1000 a high molecular weight Acetal with wear resistant additives that provide superior wear resistance and toughness allowing it to replace stainless steel chain in many applications.





Part No. Description Price
LF821-K750 7 1/2" wide flat top chain, Tan color $16.25/ft
LF821-K1000 10" wide flat top chain, Tan color  call
LF821-K1200 12" wide flat top chain, Tan color call
Other Please call for other options call

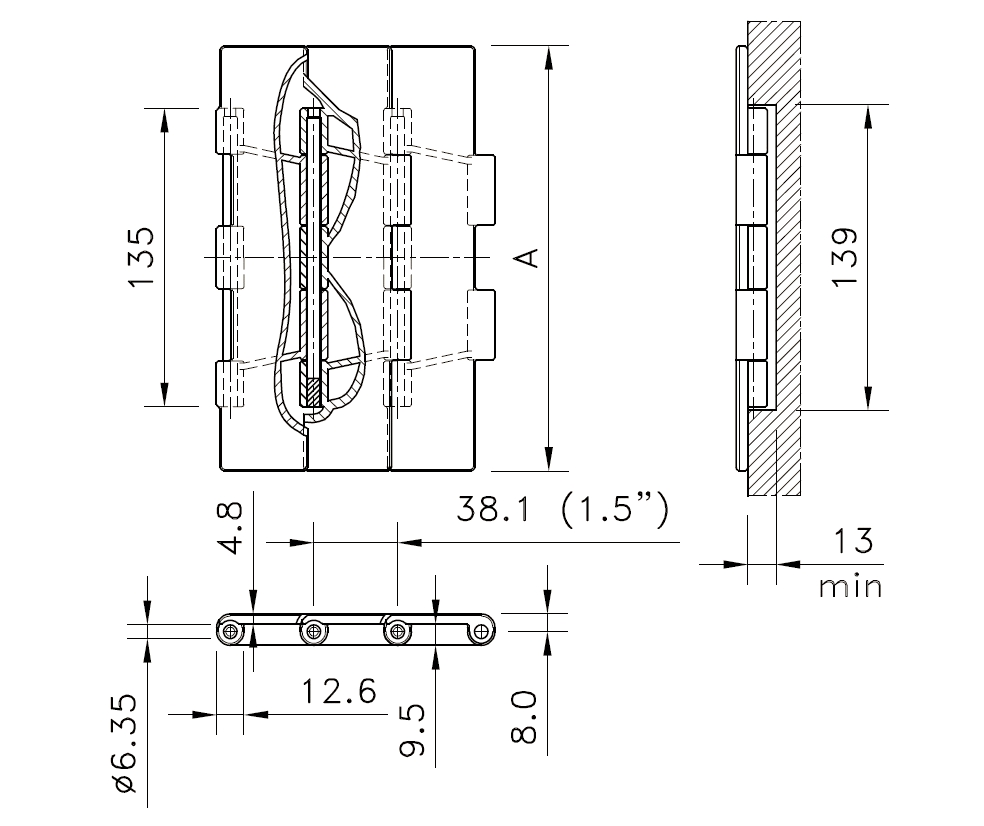

Technical Data Sheet Flat Top 821 Dimensional Drawing



Physical Properties Metric Inch
Width (A)
LF821-K750 190.5 mm 7.50 in.
LF821-K1000 254.0 mm 10.00 in.
LF821-K1200 304.8 mm 12.00 in.
Nominal Tensile Strength 3,000 N 674 lbf
Pin Material Stainless Steel
Color
Tan is standard, custom colors are available
Packaging 10 ft. standard, any length available



The data listed above are typical properties, and as such are dependent on the operating environment. No
warranties, expressed or implied, including patent warranties, or warranties of merchantability or fitness for use, are
made with respect to the product information.
