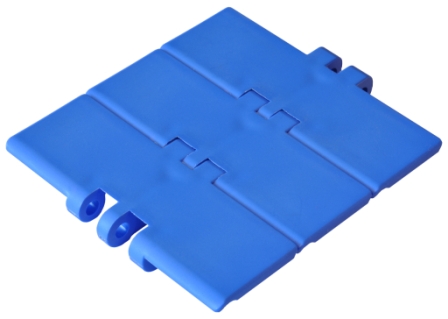

Chemical Resistant Materials
Made of blue chemical resistant PBT.
- Bleach and chlorine resistant
- Oil and ketone resistant
- Recommended for detergent and cleaner packaging lines
- Impact resistant and wear resistant
| Part No. | Description | Price |
| CR820-K325 | 3 1/4" wide flat top chain, Blue color | $11.15/ft |
| CR820-K250 | 2 1/2" wide flat top chain, Blue color | call |
| CR820-K450 | 4 1/2" wide flat top chain, Blue color | $12.35/ft |
| CR820-K600 | 6" wide flat top chain, Blue color | $15.35/ft |
|
CR820-K750
|
7 1/2" wide flat top chain, Blue color | $17.25/ft |
| CR880-TAB-K325 | 3 1/4" wide flat top chain, Blue color | $14.15/ft |
| CR880-TAB-K450 | 4 1/2" wide flat top chain, Blue color | $15.65/ft |
| Other | Please call for other options | call |
 Technical Data Sheet Flat Top 820 |
 Dimensional Drawing |
| Physical Properties | Metric | Inch |
| Width (A) | ||
| LF820-K325 | 82.6 mm | 3.25 in. |
| LF820-K250 | 63.5 mm | 2.50 in. |
| LF820-K400 | 101.6 mm | 4.00 in. |
| LF820-K450 | 114.3 mm | 4.50 in. |
| LF820-K600 | 152.4 mm | 6.00 in. |
| LF820-K750 | 190.5 mm | 7.50 in. |
| Nominal Tensile Strength | 2,000 N | 450 lbf |
| Pin Material | Stainless Steel | |
|
Color
|
Tan is standard, custom colors are available | |
| Packaging | 10 ft. standard, any length available | |
The data listed above are typical properties, and as such are dependent on the operating environment. No
warranties, expressed or implied, including patent warranties, or warranties of merchantability or fitness for use, are
made with respect to the product information.
