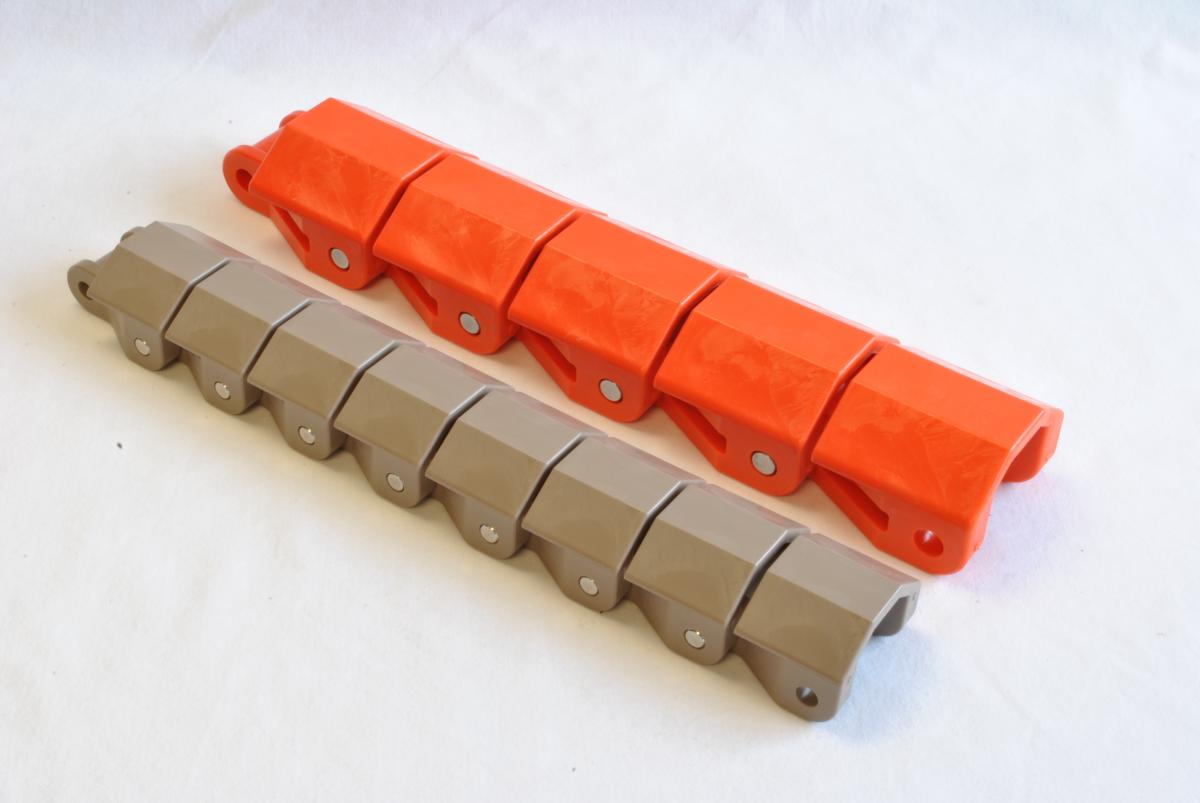

NH 78 Roof Top
NH78 Roof Top chain is a heavy duty 2.61" (66.3 mm) pitch straight running designed for bidirectional
travel. Applications include sorting tables, timber and lumber sorting.
Made from Trilon 1000 a high molecular weight Acetal with wear resistant
additives that provide superior wear resistance and toughness allowing it to replace stainless
steel chain in many applications.
| Part No. | Description | Price |
| NH78-RT-SS-Orange | NH 78 Roof top chain, Orange color | $27.85/ft |
| NH78-RT-ZPCS-Orange | NH 78 Roof top chain with zinc plated steel pins, Orange color | $26.85/ft |
| SPK-78-6T | 6 tooth Sprocket, Virgin UHMW, White color | call |
| SPK-78-8T | 8 tooth Sprocket, Virgin UHMW, White color | call |
|
SPK-78-10T
|
10 tooth Sprocket, UHMW, Black color | call |
| SPK-78-12T | 12 tooth Sprocket, UHMW, Black color | call |
| Other | Please call for other options | call |
Technical Data Sheet NH78 Roof Top
| Physical Properties | Metric | Inch |
| Width | 74.0 mm | 2.91 in. |
| Weight | 2.97 kg/m | 2.0 lb/ft |
| Nominal Tensile Strength | 8,000 N | 1,800 lbf |
| Pin Material | Stainless Steel or Zinc Plated Carbon Steel | |
|
Color
|
High Visibility Orange | |
| Attachments | K1, K2, Extended Pins | |
| Packaging | Any Length | |
The data listed above are typical properties, and as such are dependent on the operating environment. No
warranties, expressed or implied, including patent warranties, or warranties of merchantability or fitness for use, are
made with respect to the product information.
