Flat Top 820
Flat Top 820 is a straight running plastic chain with a stainless steel pin. Top plate thickness is 4.0 mm (0.16”). Applications include conveyors for food products, containers and bottling lines.
Our chains are made from Trilon 1000 a high molecular weight Acetal with wear resistant additives that provide superior wear resistance and toughness allowing it to replace stainless steel chain in many applications.
| Part No. | Description | Price |
| LF820-K325 | 3 1/4" wide flat top chain, Tan color | $7.35/ft |
| LF820-K250 | 2 1/2" wide flat top chain, Tan color | call |
| LF820-K450 | 4 1/2" wide flat top chain, Tan color | $8.15/ft |
| LF820-K600 | 6" wide flat top chain, Tan color | $10.00/ft |
|
LF820-K750
|
7 1/2" wide flat top chain, Tan color | $11.50/ft |
| SPK820-21T | Split Sprocket, 21 Tooth, available in 1" and 1 1/4" bore | $36.40 each |
| SPK820-23T | Split Sprocket, 23 Tooth, available in 1" and 1 1/4" bore | $40.80 each |
| SPK820-25T | Split Sprocket, 25 Tooth, available in 1" and 1 1/4" bore | $45.84 each |
| IDLER820-21T | Idler Pulley, 21 Tooth, available in 1" and 1 1/4" bore | $26.80 each |
| IDLER820-23T | Idler Pulley, 23 Tooth, available in 1" and 1 1/4" bore | $29.44 each |
| IDLER820-25T | Idler Pulley, 25 Tooth, available in 1" and 1 1/4" bore | $32.52 each |
| Melt Resistant Chain | ||
| MR820-K600 | 6" wide flat top chain, Black color | $11.25/ft |
| MR820-K750 | 7 1/2" wide flat top chain, Black color | $14.85/ft |
| Other | Please call for other options | call |
 Technical Data Sheet Flat Top 820 |

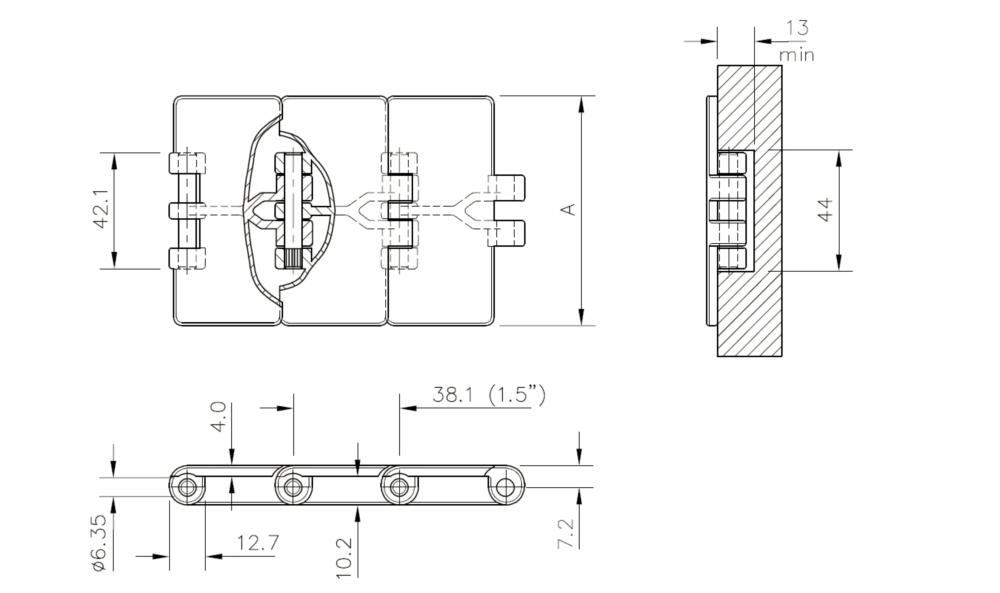

 Dimensional Drawing |
| Physical Properties | Metric | Inch |
| Width (A) | ||
| LF820-K325 | 82.6 mm | 3.25 in. |
| LF820-K250 | 63.5 mm | 2.50 in. |
| LF820-K400 | 101.6 mm | 4.00 in. |
| LF820-K450 | 114.3 mm | 4.50 in. |
| LF820-K600 | 152.4 mm | 6.00 in. |
| LF820-K750 | 190.5 mm | 7.50 in. |
| Nominal Tensile Strength | 2,000 N | 450 lbf |
| Pin Material | Stainless Steel | |
|
Color
|
Tan is standard, custom colors are available | |
| Packaging | 10 ft. standard, any length available | |
The data listed above are typical properties, and as such are dependent on the operating environment. No
warranties, expressed or implied, including patent warranties, or warranties of merchantability or fitness for use, are
made with respect to the product information.
