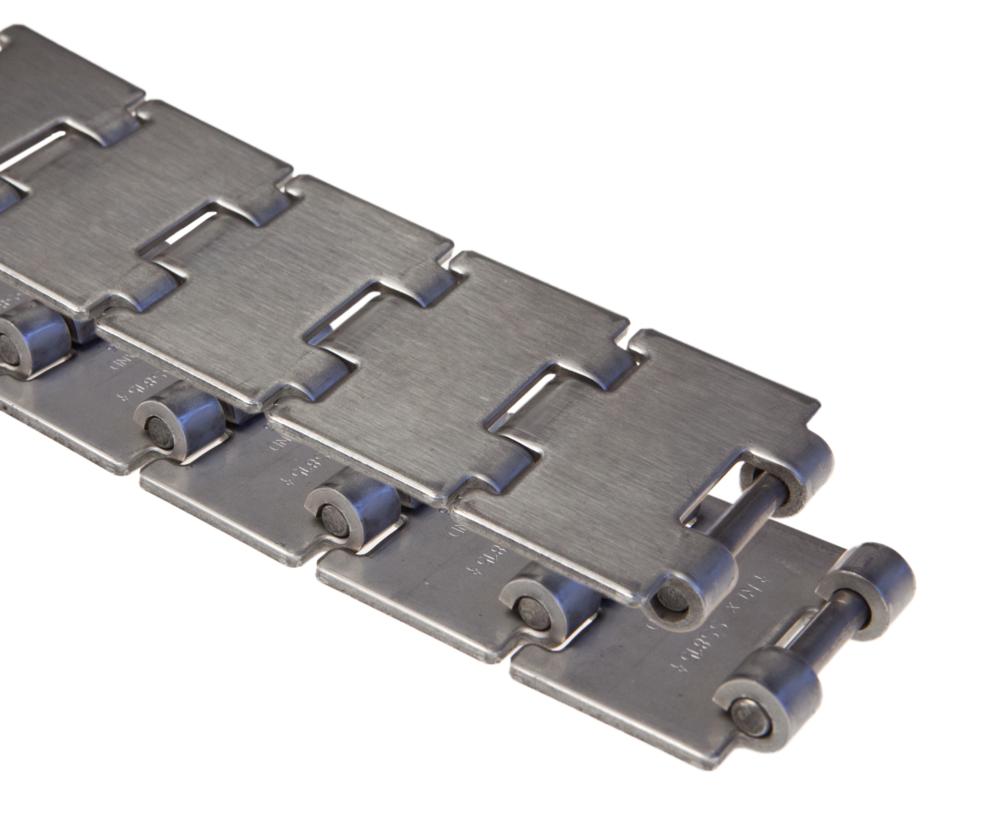

Steel Flat Top
Steel Flat Top Chain is available is straight running 815 series and side flexing 881 series. These chains are heat treated for high strength and great wear resistance.
815 series can be run on both 815 sprockets or 820 sprockets and idlers.
 |
 |
| 815 Steel Flat Top | 881 Steel Flat Top |
| Part No. | Description | Price |
| 815-K250 SS420 | 2 1/2" Wide straight running chain, 420 Stainless steel | $14.35/ft |
| 815-K325 SS420 | 3 1/4" Wide straight running chain, 420 Stainless steel | $15.35/ft |
| 815-K450 SS420 | 4 1/2" Wide straight running chain, 420 Stainless steel | $19.85/ft |
|
815-K600 SS420
|
6" Wide straight running chain, 420 Stainless steel | $25.85/ft |
|
815-K750 SS420
|
7 1/2" Wide straight running chain, 420 Stainless steel | $28.85/ft |
| 881 TAB K325 CS | 3 1/4" Wide side flexing, tabbed chain. Carbon steel | $19.85/ft |
| 881 TAB K325 SS420 | 3 1/4" Wide side flexing, tabbed chain. 420 Stainless steel | $24.75/ft |
| 881 TAB K450 SS420 | 4 1/2" Wide side flexing, tabbed chain. 420 Stainless steel, out of stock | $27.35/ft |

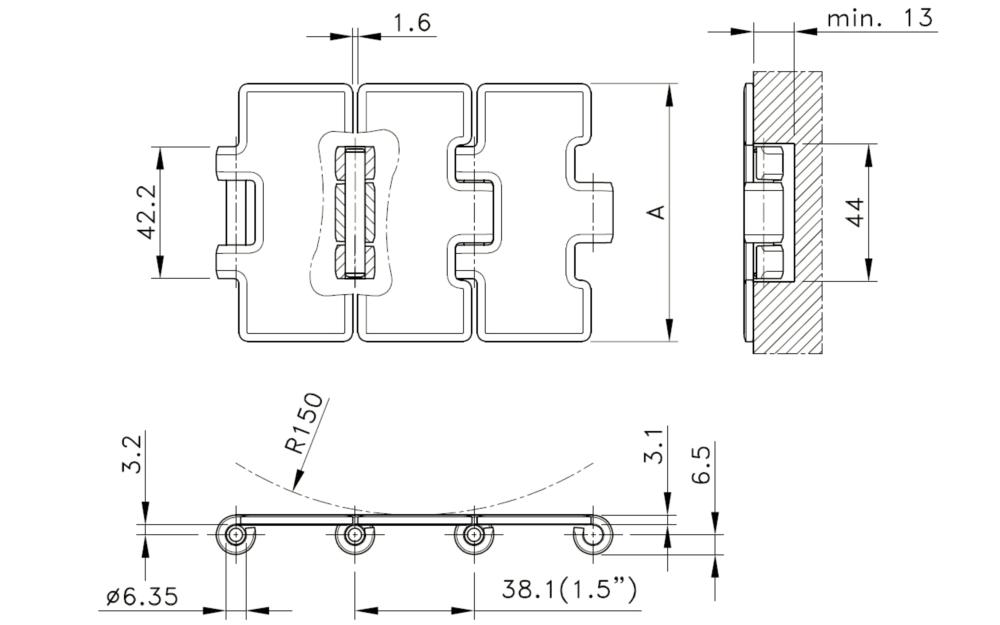

 Dimensional Drawing 815 Steel Flat Top |
 Dimensional Drawing 881 Steel Flat Top |
