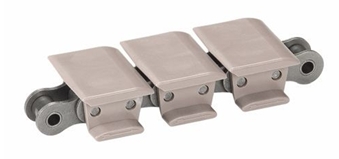

Snap-on 1843 TAB
Snap-on 1843 TABis a side flexing snap-on chain. It is designed with overlapping plastic flights assembled on a roller chain with extended pins.
It has a steel 1/2" pitch roller chain with overlapping plastic top plates. Top plate thickness 3.2 mm. It runs on standard ANSI no. 40 sprockets.
Applications include packaging at high loads and speeds. This two part design reduces noise.
| Part No. | Description | Price |
| LF1843TAB-K125-CS | 1 1/4" wide Tabed, 1/2" pitch Carbon steel chain | $17.50/ft |
| LF1843TAB-K125-SS | 1 1/4" wide Tabed, 1/2" pitch Stainless steel chain | $23.85/ft |
| LF1843TAB-K125-LINK | TOP PLATE ONLY 1 1/4" wide TAN or BLACK | $1.00/pc |
| LF1843TAB-K200-CS | 2" wide Tabed, 1/2" pitch Carbon steel chain | call |
|
LF1843TAB-K200-SS
|
2" wide Tabed, 1/2" pitch Stainless steel chain | call |
| Other | Please call for other options | call |
Technical Data Sheet Snap-on 1843 Tab
| Physical Properties | Metric | Inch |
| Width | ||
| LF1843TAB-K125 | 31.5 mm | 1.25 in. |
| LF1843TAB-K200 | 50.6 mm | 2.00 in. |
| Nominal Tensile Strength | 2,000 N | 450 lbf |
| Roller Chain Material | Carbon Steel or Stainless Steel | |
|
Color
|
Tan is standard, custom colors are available | |
| Attachments | Tabbed and Heavy Duty versions are available | |
| Packaging | 10 ft. | |
The data listed above are typical properties, and as such are dependent on the operating environment. No warranties, expressed or implied, including patent warranties, or warranties of merchantability or fitness for use, are made with respect to the product information.
